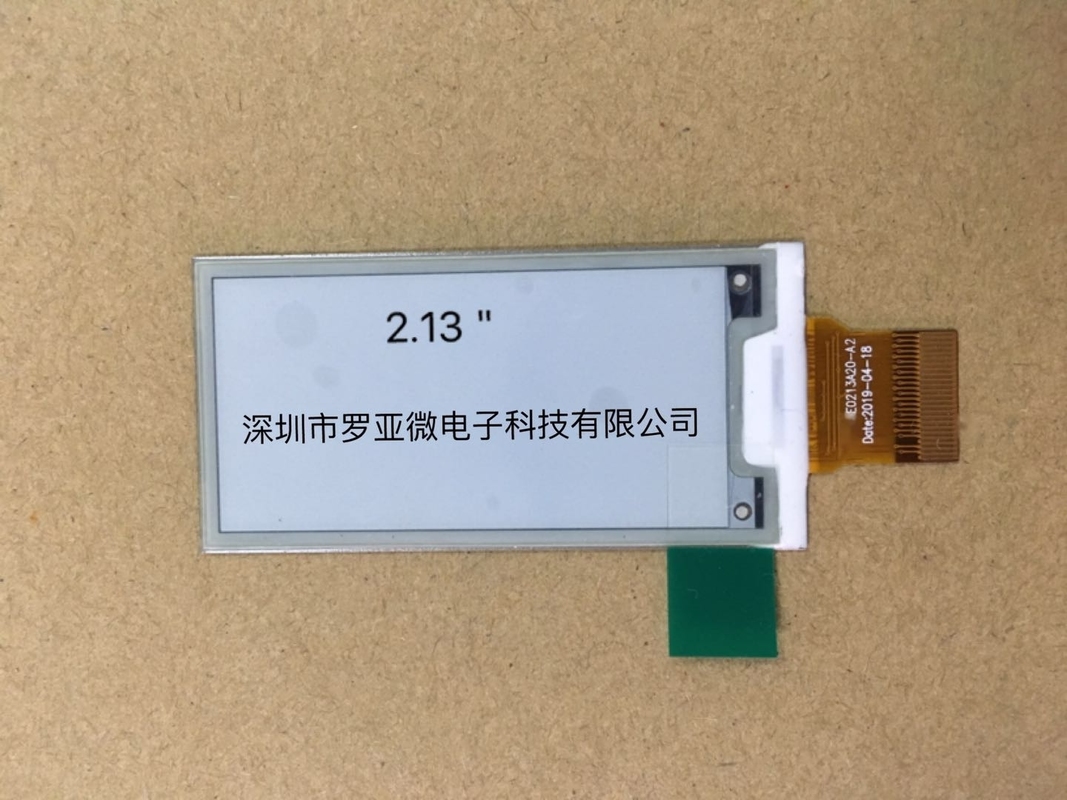

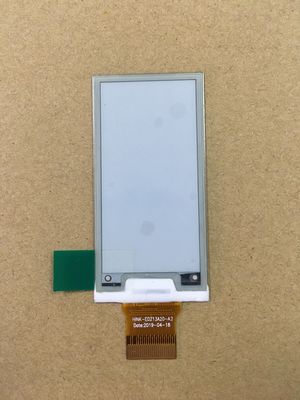

E0213A26 2.13-inch E-Paper Display (EPD) Module 104x212 Three-Color Electronic Shelf Label Screen
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Royal Display or ODM/OEM |
| Сертификация: | SGS, ROHS |
| Номер модели: | E0213A26 |
Оплата и доставка Условия:
| Количество мин заказа: | Договоренно |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Картонные, картон, EPE, блистер. |
| Время доставки: | 15 ~ 25 Рабочий день |
| Условия оплаты: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Поставка способности: | 300K ПК/месяц |
|
Подробная информация |
|||
| Модель: | E0213A26 | Технология отображения: | АМЕПД |
|---|---|---|---|
| Размер экрана: | 2,13 дюйма | Разрешение: | 104 (h) × 212 (V) пиксели |
| Отображать цвета: | Черный, белый, красный | Активная площадь: | 23,71 (h) × 48,55 (V) мм |
| Выделить: | 2.13-inch E-Paper Display Module,Three-Color Electronic Shelf Label,E Ink Display Module with warranty |
||
Характер продукции
E0213A26 2.13-inch E-Paper Display (EPD) Module 104x212 Three-Color Electronic Shelf Label Screen
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | E0213A26 |
| Display Technology | AMEPD |
| Screen Size | 2.13 Inch |
| Resolution | 104 (H) × 212 (V) pixels |
| Display Colors | Black, White, Red |
| Active Area | 23.71 (H) × 48.55 (V) mm |
| Pixel Pitch | 0.228 (H) × 0.229 (V) mm |
| Outline Dimension | 29.2 (H) × 59.2 (V) × 1.05 (D) mm |
| Weight | 3.0 ± 0.2 g |
| Driver IC | SSD1675 |
| Interface | 4-wire / 3-wire SPI |
| Logic Voltage (VCI) | 2.2V - 3.7V (3.3V Typ.) |
| Operating Current | 4.5 mA |
| Deep Sleep Current | 2 μA |
| Operating Temp | 0°C ~ +50°C |
| Storage Temp | -25°C ~ +60°C |
Short Description:
The E0213A26 is a 2.13-inch Active Matrix Electrophoretic Display (AMEPD) module with a resolution of 104(H) x 212(V). It features bi-stability (maintains display without power after refresh), ultra-high contrast, high reflectance, and ultra-low power consumption, supporting black, white, and red display. It is specifically designed for Electronic Shelf Label (ESL) systems.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
The E0213A26 is a high-performance 2.13-inch electronic paper display module. It utilizes active matrix electrophoretic display technology to deliver sharp black, white, and red display. This module integrates gate buffer, source buffer, timing control logic, oscillator, DC-DC converter, SRAM, LUT, and VCOM circuits. Its pure reflective mode and bi-stable characteristics ensure sunlight readability and extremely low standby power consumption, making it ideal for battery-powered electronic label applications.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
