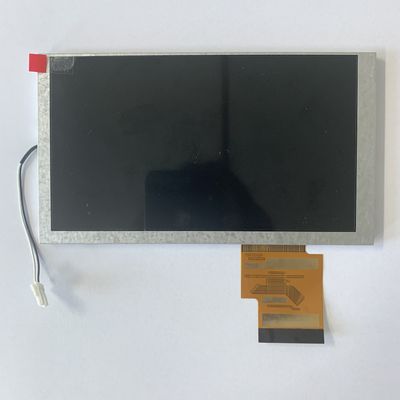

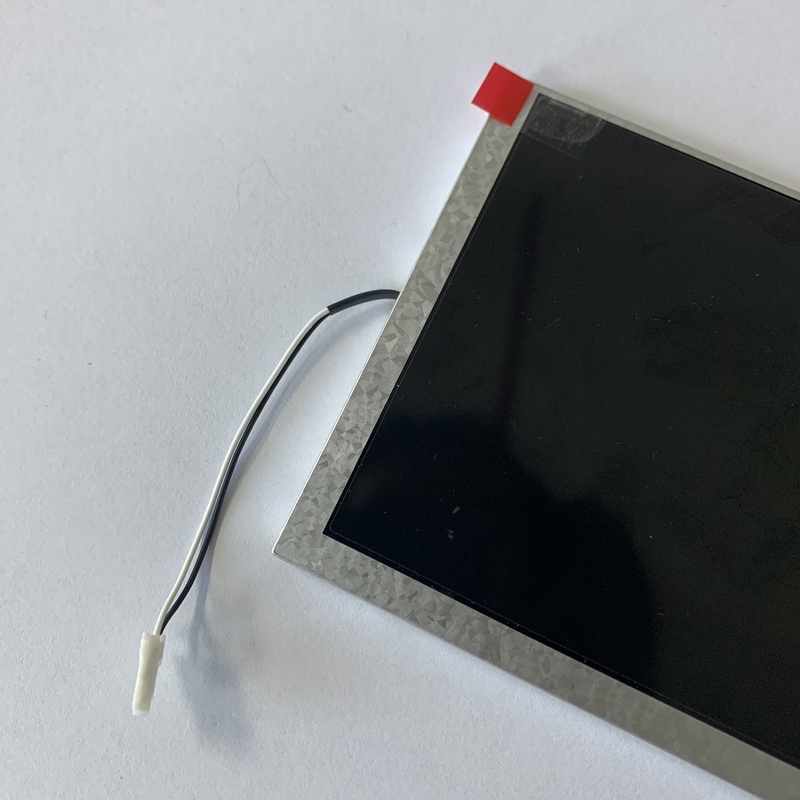

XX062H088-50M309-21T 6.2-inch TFT LCD Display Module 800×480 Resolution Automotive Grade
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Royal Display or ODM/OEM |
| Сертификация: | SGS, ROHS |
| Номер модели: | XX062H088-50M309-21T |
Оплата и доставка Условия:
| Количество мин заказа: | Договоренно |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Картонные, картон, EPE, блистер. |
| Время доставки: | 15-25 рабочих дней |
| Условия оплаты: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Поставка способности: | 300 тыс. шт/месяц |
|
Подробная информация |
|||
| Модель: | XX062H088-50M309-21T | Размер экрана: | 6,2 дюйма |
|---|---|---|---|
| Активная площадь: | 137,52 (h) × 77,232 (v) мм | Разрешение: | 800 × 480 пикселей |
| Пиксельный шаг: | 0,1719 (h) × 0,1609 (V) мм | Режим отображения: | Нормально белый |
| Выделить: | 6.2-inch TFT LCD display module,800×480 resolution LCD module,automotive grade TFT LCD |
||
Характер продукции
XX062H088-50M309-21T 6.2-inch TFT LCD Display Module 800×480 Resolution Automotive Grade
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description | |
| Model |
|
|
| Screen Size | 6.2 inch | |
| Active Area | 137.52 (H) × 77.232 (V) mm | |
| Resolution | 800 × 480 pixels | |
| Pixel Pitch | 0.1719 (H) × 0.1609 (V) mm | |
| Display Mode | Normally White | |
| Luminance | 500 cd/m² (Typ.) | |
| Contrast Ratio | 600 : 1 (Typ.) | |
| Response Time | 8 ms (Typ.) | |
| Viewing Angle | L/R: 75°, U/D: 70° (Typ., CR>10) | |
| Optimum View | 6 o'clock | |
| Interface | 60-pin FPC (FH28-60S-0.5SH) | |
| Supply Voltage | VCC=3.3V, AVDD=10V, VGH=15V, VGL=-7V (Typ.) | |
| Operating Temp | -20°C ~ +60°C | |
| Storage Temp | -30°C ~ +70°C |
Short Description:
The XX062H088-50M309-21T is a 6.2-inch TFT LCD display module with 800x480 resolution, 500 nits brightness, and wide viewing angles. Designed for automotive applications, it features a robust design, wide operating temperature range, and TTL interface.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
The XX062H088-50M309-21T is a high-performance 6.2-inch TFT LCD display module designed specifically for demanding applications such as automotive displays. It features an 800 x 480 pixel resolution, high brightness, and wide viewing angles, ensuring clear and vibrant visuals even in challenging lighting conditions. Built with an amorphous silicon TFT panel and an integrated driving circuit, this robust module offers reliable performance for a wide range of industrial and commercial uses.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
