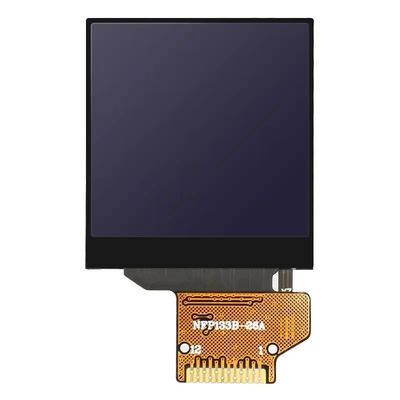

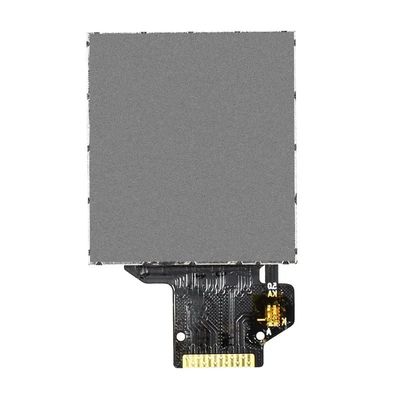

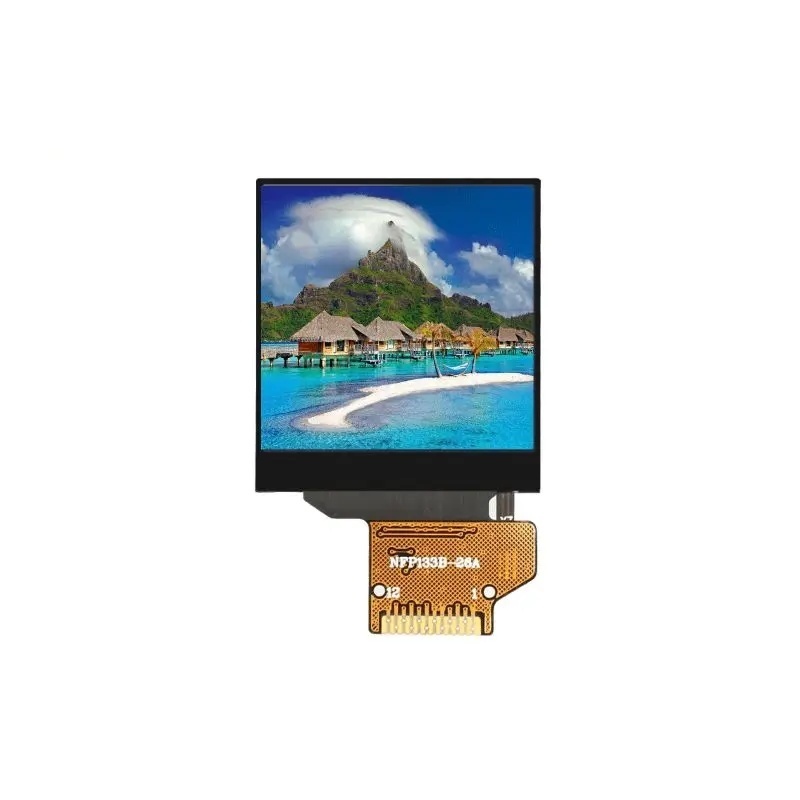

1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC

Подробная информация о продукте:

Место происхождения: КИТАЙ
Фирменное наименование: Wisevision
Сертификация: SGS, ROHS
Номер модели: N133-2424TBBIG26-H12

Оплата и доставка Условия:

Количество мин заказа: 500
Цена: 1.15
Условия оплаты: T/T.
Лучшая цена контакт

Подробная информация
Модель №: N133-2424TBBIG26-H12 Решение дисплея: 240*240
Интерфейс: SPI / MCU Размер контура (мм): 26,16 × 29,22 × 1,5 мм
Активная площадь (мм): 23,4 × 23,4 мм Водитель ic: ST7789V3
Яркость: 350CD/M2 Эксплуатационная температура: -20°C~70°C
Хранение температура: -30C ~ 80C
Выделить:

1.33 inch TFT LCD module

,

240x240 RGB TFT display

,

ST7789V3 IC LCD module

Характер продукции

1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC
Product Specifications
N133-2424TBBIG26-H12 is a TFT-LCD Module with a 1.33-inch diagonal square screen and a resolution of 240x240 pixels. This square LCD screen adopts an IPS panel, which has the advantages of higher contrast, a full black background when the display or pixel is off, and wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), 800:1 contrast ratio (typical value), 350 cd/m² brightness (typical value), and an anti-glare glass surface. The module is built-in with ST7789V3 driver IC that can support via SPI interfaces. The power supply voltage of LCM is from 2.4V to 3.3V, the typical value of 2.8V. The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, medical instruments, etc. It can be operating at temperatures from -20ºC to+ 70ºC and storage temperatures from -30ºC to +80ºC.
Model NO. N133-2424TBBIG26-H12
Size 1.33 inch
Resolution 80*RGB*160
Interface 4Line SPI
LCD Type TFT-LCD
Viewing Direction All
Outline Dimension 26.16×29.22×1.5 mm
Active Size 23.4×23.4 mm
Specification ROHS REACH ISO
Operating Temp -20ºC ~ +70ºC
Storage Temp -30ºC ~ +80ºC
IC Driver ST7789V3
Brightness 350CD/M2
Application Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics
Country of Origin China
1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC 0

Application
The N133-2424TBBIG26-H12(1.33inch 240*240pixels TFT LCD) is suitable for a wide range of applications, including:

  • Smart Meters: Displaying energy consumption data, voltage, current, and other metrics.

  • Wearable Devices: Small screens for fitness trackers, smartwatches, etc.

  • IoT Devices: User interfaces for connected devices.

  • Portable Electronics: Handheld gadgets, medical devices, and more.

  • Industrial Equipment: Status displays for control panels and machinery.

1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC 1
Product Advantages

1. High resolution: The 1.33-inch TFT screen can provide high resolution and high contrast, and users can get clear and vivid images and charts.
2. Energy saving: The TFT display screen adopts LCD technology, which can greatly save power and save battery life.
3. Bright colors: The TFT screen can provide high color saturation, and the image is brighter, truer and more vivid.
4. Wide viewing angle: The TFT display screen has a wide range of viewing angles, which not only greatly improves the user experience, but also facilitates shared viewing by multiple people.
5. Fast display speed: The TFT screen has a fast response speed and can support fast dynamic images and video streaming media, bringing users a good visual experience.
1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC 2

Company Profile

Royal Display Co., Ltd.
Specializing in the design, development, and production of LCD display modules for over 10 years, we provide comprehensive display solutions tailored to meet diverse industry needs.

Our product portfolio includes two main series: standard and custom-made displays. We offer a wide range of display technologies, such as:

  • Segment LCD Displays: Ideal for numeric and alphanumeric applications.

  • Character LCD Displays: Perfect for text-based interfaces.

  • Graphic LCD Displays: Suitable for complex graphics and icons.

  • COG (Chip-on-Glass) LCD Displays: Compact and reliable for space-constrained designs.

  • TFT Color Displays: High-resolution, full-color screens for vibrant visuals.

  • OLED Displays: Superior contrast and flexibility for modern applications.

  • 7-Segment LED Displays: Simple and efficient for numeric indicators.

We support various film types, including TN (Twisted Nematic), HTN (High-Twist Nematic), STN (Super-Twist Nematic), FSTN (Film-compensated STN), and TFT (Thin-Film Transistor). Our advanced manufacturing processes, such as COG (Chip-on-Glass), TAB (Tape Automated Bonding), COB (Chip-on-Board), and SMT (Surface Mount Technology), ensure high-quality and reliable products.

With a production capacity of 300,000 LCD/LCM units per month, we cater to industries such as consumer electronics, industrial equipment, medical devices, automotive, smart home appliances, and IoT devices.

At Royal Display, we are committed to delivering innovative, high-performance display solutions that meet the evolving needs of our global clients.
1.33 Inch Small Size 240 RGB× 240 Dots TFT LCD Module with St7789V3 IC 3
