LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

Сертификация
КИТАЙ Royal Display Co.,Limited Сертификаты
КИТАЙ Royal Display Co.,Limited Сертификаты
Просмотрения клиента
Королевский дисплей, идеальный поставщик LCD, быстрая реакция, спасибо для сотрудничества.

—— Беата от Польши

Не получил lcds сегодня, никакие повреждение и тест хорошо, спасибо.

—— Natalya Kryukova от России

Быстрая доставка и хорошее качество, я счастлив с королевским дисплеем, я прикажу позже.

—— Meerimgul от Турции

Высококачественный экран, быстрое обслуживание.

—— Дэниэл Castelo от Швейцарии

Оставьте нам сообщение

LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display
LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

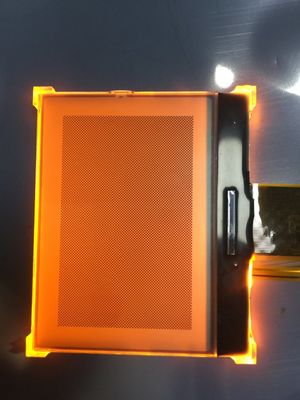

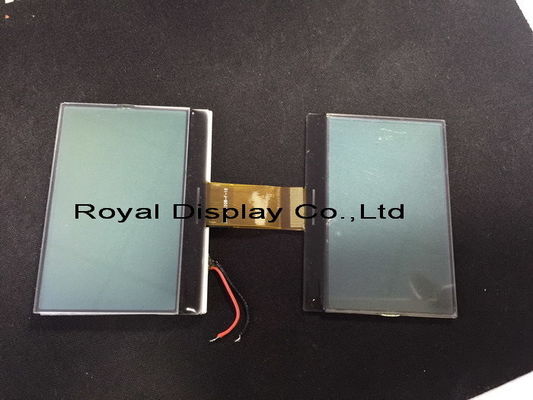

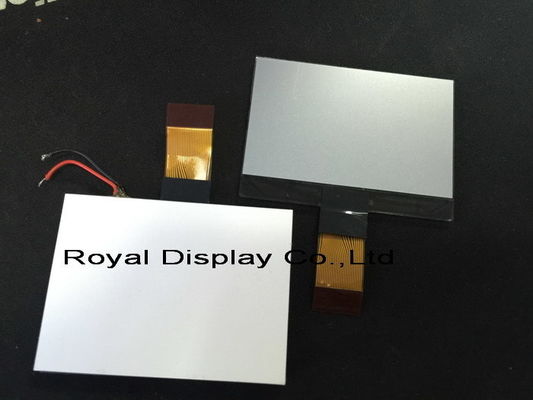

Большие изображения :  LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: ROYAL DISPLAY
Сертификация: ROHS, ISO
Номер модели: RYG160100A
Оплата и доставка Условия:
Количество мин заказа: 500pcs
Цена: Negotiable
Упаковывая детали: Коробки, Capboard, EPE, поднос волдыря
Время доставки: 15-20 дней работы
Условия оплаты: L/C, T/T, западное соединение
Поставка способности: 300К/М
Подробное описание продукта
Разрешение: 160*100 Цвет баклигхт: белый цвет
Соединение: ФПК-паять Тип дисплея: ФСТН
Электропитание: 3V Интерфейс: Параллель
Солнечный свет читаемый: да Ряд угла взгляда: 6 часов
Соединитель: FFC-соединитель

Transflective type characters 160x100 dots Mono Graphic lcd screen module display

PRODUCT DESCRIPTION
1. 160x100dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Item Description
Product Name 160x100dots Graphic LCD Module
Model No. RYG160100A
Dot Format 160x100
Outline (mm) 55*46
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7528
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC



OUR SERVICE ADVANTAGES

1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.



Feature

1. Low power consumption

2. High brightness and luminous intensity output

3. Easy assembly

4. High intensity and reliability

5. Low voltage and current operation

6. energy saving & long life

7. Solid-state LED chip based

8. Easy mounting on printed circuit board and sockets

9. Rhos&Reach approved

10. Better show effect and wide view angle





Our Factory



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 0



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 1



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 2





FAQ



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q: Are you open to OEM processing?

A: Yes, we can OEM.



Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

Q: Do you provide Customize product ?
A: Yes, we could offer the customize the luminunce/tickness/Cover glass size and any interface.

Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.

Q: Can you produce on the OEM?
A: Yes, we can.



Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
